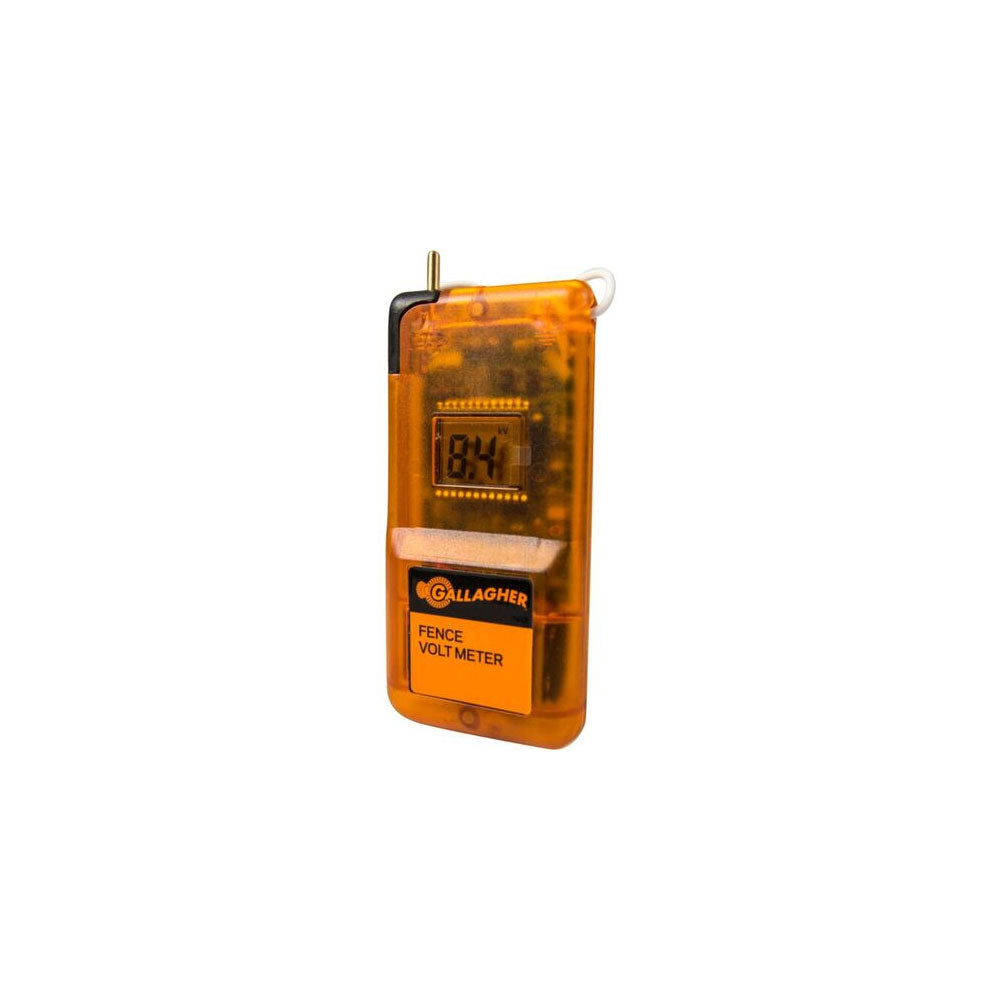

GALLAGHER Fence Volt Meter G50331

The Gallagher Fence Volt Meter provides instant reassurance that your fence is functioning properly with a digital readout for precise fence voltage measurement.

• Accurate Voltage Measurement: Offers a digital readout to accurately measure fence voltage, helping trace fence line shorts and faults and checking earth performance.
• Battery Compatibility: Reads the voltage for battery energisers, even when the energiser is in Battery Save Mode.

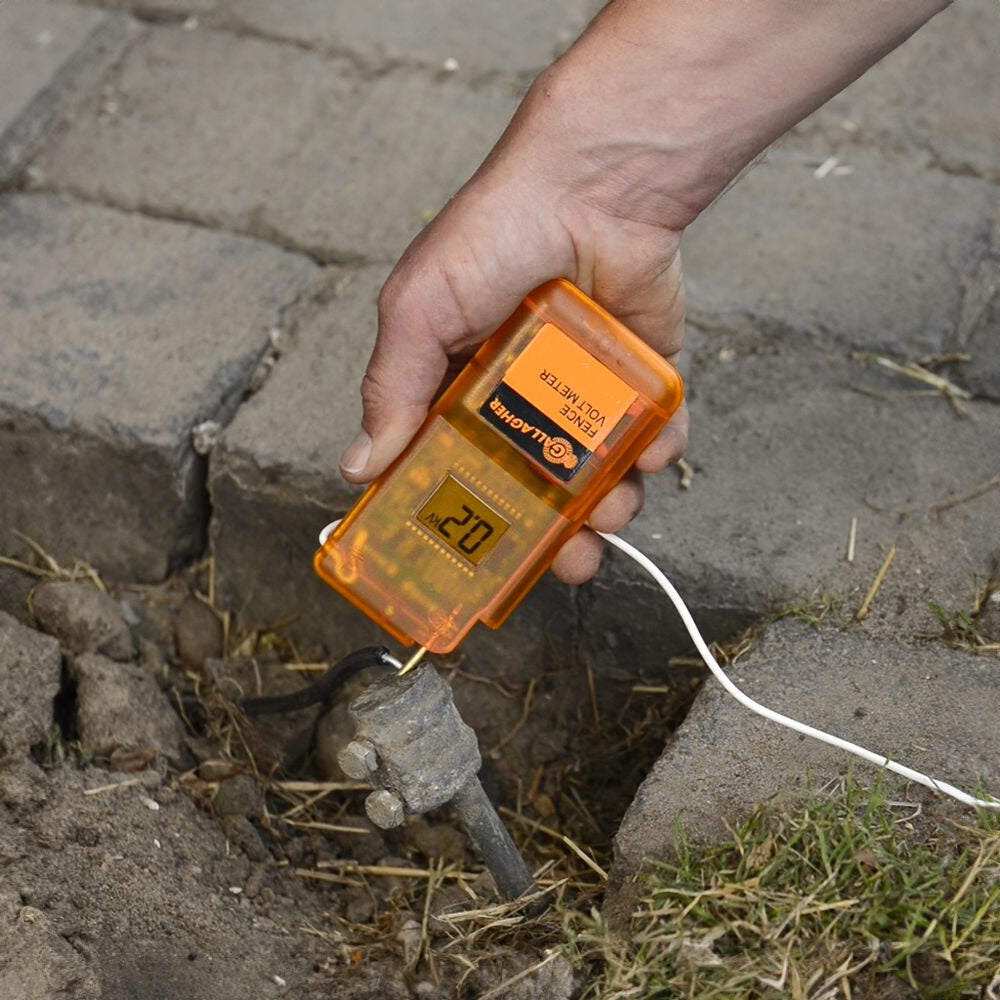

• Convenient Features: Equipped with an earth stake for a solid ground connection and a fence stud for quick, hassle-free contact with the fence.
• Battery Powered: Powered by one 9V battery with a lifespan of 6-12 months, and includes a display that shows low battery conditions.
• Wide Voltage Range: Displays fence voltage from 100V to 10kV in 100-volt increments and from 10kV to 12kV in 1,000-volt increments.
• Easy to Use: Activated when a fence pulse is detected, with an auto turn-on indication. Simply travel along the fence line and check the voltage about every 100m to trace a fault.
• Durable and Portable: Water-resistant with a protective pouch included, ensuring durability in outdoor conditions.

Specifications:

• Measures Voltage: Yes
• Maximum voltage rating: 15kV
• Warranty: 1 Year
• Product Dimensions: Height 136mm, Width 66mm, Depth 25mm
• Product Weight: 0.2kg
• 9V battery included (6LR61)

How to Use:

To trace a fault using the volt meter, travel along the fence line and check the voltage approximately every 100m. If there is a serious short, the voltage will continue to drop until the fault is located.
