Creating your own garden sprinkler system can transform your garden into a lush, green haven all year round. Say goodbye to unsightly garden hoses and hello to a convenient, efficient irrigation solution. Here’s a step-by-step guide to help you design and install your DIY garden sprinkler system.
Step 1: Plan Your Layout
Start by drawing a scale diagram of your yard. Include all the areas you want to water, such as the lawn, flower beds, shrubs, trees, and vegetable patches. This plan will help you determine where to lay your pipes and how many sprinkler heads you’ll need.
Step 2: Identify Planting Zones
Different plants have different watering needs. Identify the type of planting in each zone:
- Lawn: Pop-up or gear-driven heads
- Flower beds and shrubs: Shrub heads or bubblers
- Areas near decks, driveways, and buildings: Fixed pop-up heads to avoid watering non-garden areas

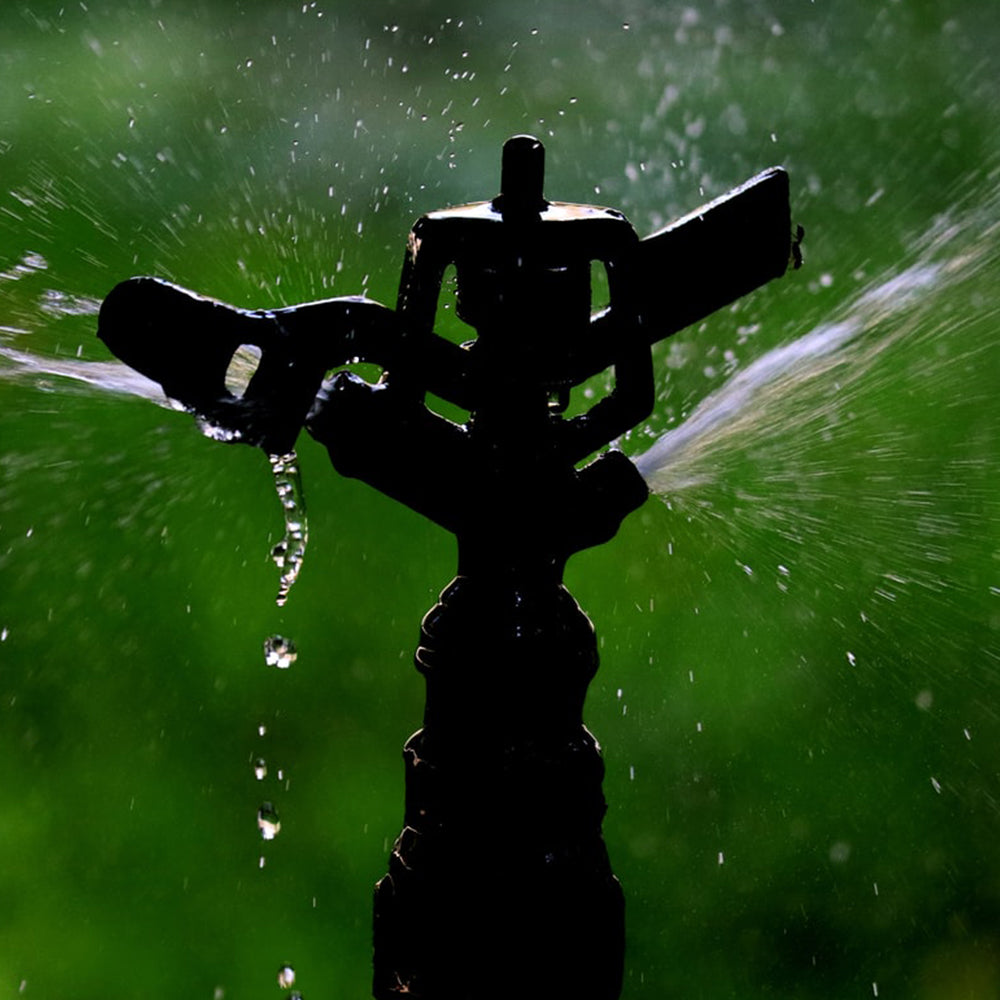

Step 3: Choose Sprinkler Heads
Select the right type and size of sprinkler head for each zone. Ensure that sprinkler sprays overlap slightly to provide thorough coverage without waterlogging. Minimize overspray onto driveways and paths to conserve water and reduce costs.
Step 4: Position Sprinkler Heads
Using your diagram, mark the best location for each sprinkler head based on its spray diameter. For an efficient layout, cut out circles to scale and move them around on your plan. Mark each type of sprinkler head with a different colour to avoid confusion. Once satisfied, trace the final positions onto your diagram.
Step 5: Calculate Flow Rate
Determine how many sprinkler heads your main line can support by calculating your water flow rate. Fill a 10-liter bucket with the tap fully open, noting the time it takes. Use the formula:
For example, if it takes 30 seconds to fill the bucket:
Step 6: Install Control Valves and Backflow Preventer
Start your main line from the garden tap, installing control valves, a tap timer, and a backflow preventer to protect potable water from contamination.
Step 7: Automate Your System
While not essential, automating your irrigation system with timers and moisture sensors can save time and water. This setup ensures efficient watering even when you’re away.
Step 8: Lay Out Your Pipes and Sprinklers
Mark your irrigation design on the ground using stakes and string. Dig trenches 15-30cm deep for the pipes. Lay out your pipes, joiners, and sprinkler heads, ready to connect.
Step 9: Connect and Test
Flush the pipes to remove debris before attaching the sprinkler heads. Ensure they’re slightly below lawn height to avoid mower damage. Turn on the water to check the spray coverage and adjust as needed.
Step 10: Check for Leaks and Backfill
Walk along the pipes with the water running to spot leaks. Correct any issues before backfilling the trenches. Pack the soil firmly to support the pipes and sprinkler heads.
Final Tips
- Protect exposed pipes and valves from extreme weather.
- Seek advice from irrigation specialists if needed. Many stores offer design services to simplify the process.
By following these steps, you can create an efficient, automated garden sprinkler system that keeps your garden thriving while saving time and water.
